Product Disciption
Manual Hoist
Trolley
EXDP & EXDG
EXDP & EXDG

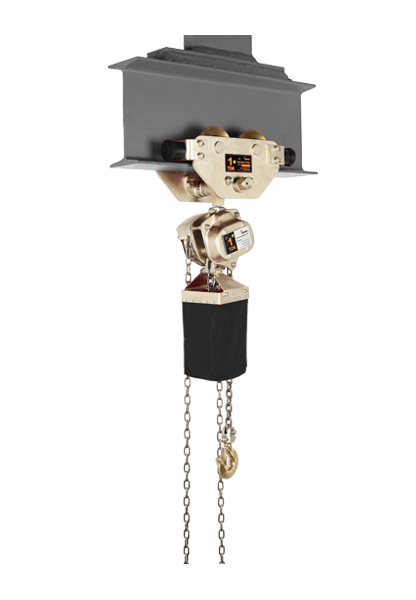

DAESAN spark resistant chain block is applied with fireproofing materials to prevent explosion and fire hazard.
- Bearings : Shielded, lifetime lubricatied, single row ballbearings.
- Suspension Lug : Pivot mounted suspension shaft designed to equally distribute the load to all wheels.
- EXDP & EXDG spark resistant trolley comes with Nickel plated trolley plates
- Solid bronze wheels
- Drop stop and rubber bumpers
- EXDP & EXDG spark resistant trolley comes with
- Solid bronze wheels
- EXDP & EXDG spark resistant trolley comes with
- Nickel plated trolley plates
- EXDP & EXDG spark resistant trolley comes with
- Drop stop and rubber bumpers
Product specification
| Name | Spark Resistant plain & geared trolley |
|---|---|
| Model | EXDP & EXDG |
| Production items | 1t,2t,3t,5t,10t |
| Options | • Special beam width made-to-order • Chain extension other than the standard chain (gear trolley hand chain) |
| Product Features | Corrosion protection (Basic/Medium) EXDP & EXDG-trolleys have outstanding corrosion protection. All steel parts are electroless nickel plated. This is a must in wet rooms and in very aggressive environment. Larger flange width are optional. Wheels fit flat and also tapered flanges!
|
|---|
Product Video
Product data

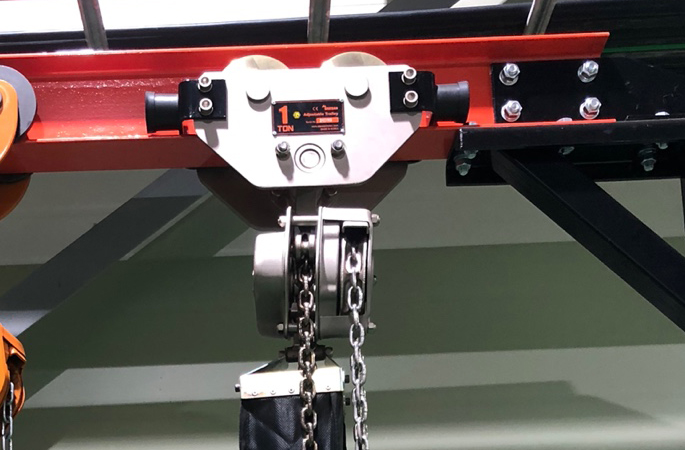

Product installation example
Product related inquiry
For product quotation, product usage inquiry,
agency affiliate inquiry, or other inquiries in detail,
please use the inquiry form at the customer center on our homepage.
