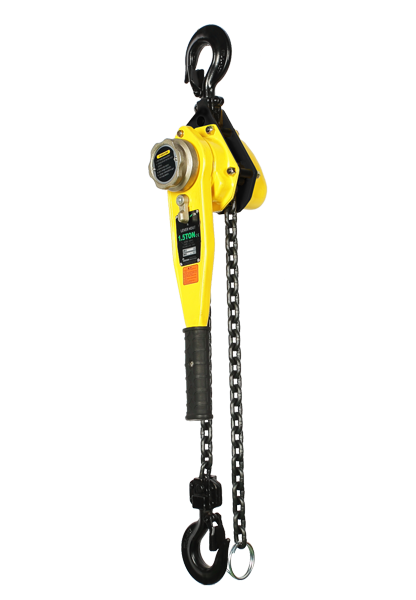

DAESAN NDM lever hoist is one of the most reliable and durable ratchet lever hoists in the industry. Its light weight and portable design, easy free-chaining feature and 360°rotating handle make it one of the most versatile hoists on the market today.
- Overload protection by slip clutch system (Option)
- Free "UP" chaining operation at neutral under no load status without activating free chaining mode
- Additional welded plate on side plate increasing durability
- Protruding type gear case for better safety
- Cold-Forging technology in gears increasing precision and durability
- Various tonnage available
- Various tonnage from 0.8 ton to 12 ton available
(Please refer to the product catalog
below for detailed specifications)
- Cold forged integrated gears
- Highly durable cold forged
integrated gears (3/4t, 1.5t, 2t)
- Protruding type gear case
- Protruding type gear case for
better gear durability and safety
- Overload Protection by Slip Clutch
- Slip clutch to prevent the hoist from being
used to lift damaging loads beyond rated capacity
- Free "UP" chaining operation
- Free "UP" chaining operation at neutral under
no load status without
activating free chaining mode
- Protecting hook and latch
- NDM lever hoist has a hook storage point.
Operator can quickly and easily store the hook during travel
This is a great feature that protect the hook, latch and load
chain of a lever hoist from damage during travel.
-
01

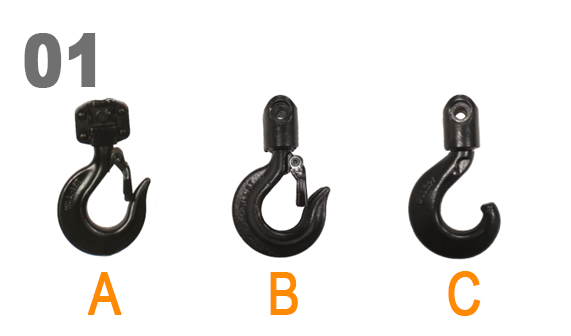

- Various application hooks (Options)
- A : Rivet type (basic) B : Welding type (recommended for strength improvement ) C : Beam type (recommended for work on steel structures in shipyards)
-
02

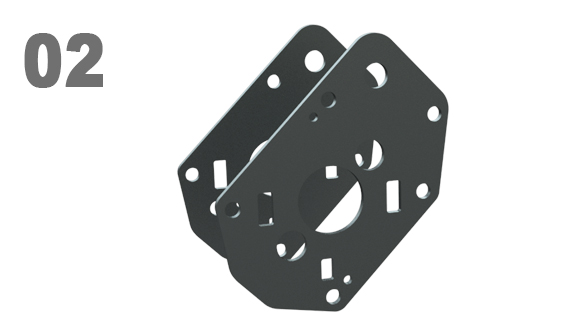

- Frame / Side Plate
- Rugged, light weight steel design support internal mechanism. Welded plate on side plate maximize the hoist durability.
-
03

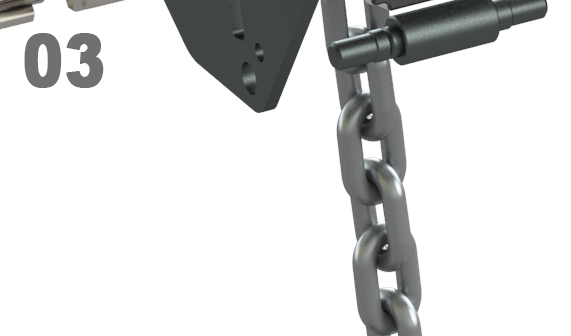

- Chain
- Electric welded alloy steel load chain is heat treated for wear resistance and strength. Accurately and uniformly sized to seat properly in load sheaves.
-
04

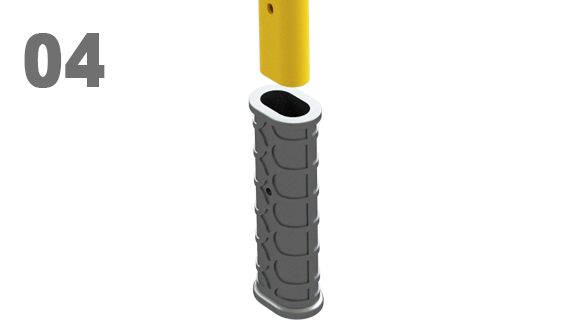

- Rubber Grip Handle
- Rubber Grip Handle for non-slip operation.
-

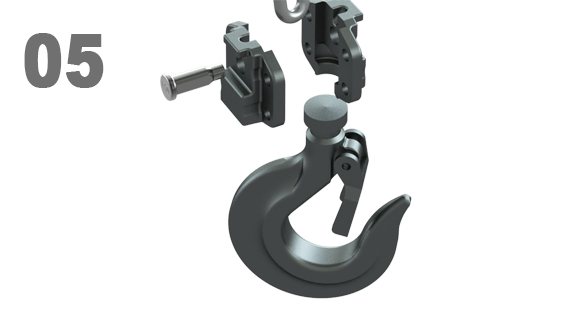

05
- Hooks
- All hooks are drop forged, heat treated steel with safety latches. Both hooks rotates 360°for easy rigging.
-

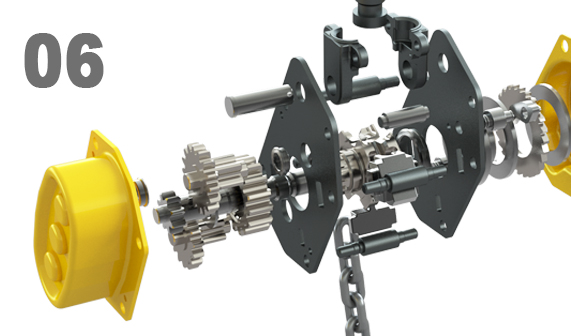

06
- Stay Bolt
- Welded stay bolt increases durability of lever hoist caused by external impact or shock.
-

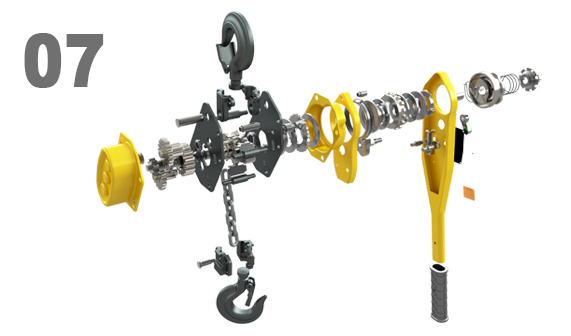

07
- Mechanical Load Brake
- Brake can hold full capacity load stationary in any position. Load is not transferred back to handle during handle advancement.
Product specification
| Name | Lever Hoist |
|---|---|
| Model | NDM |
| Production items | 0.8t, 1.5t, 2t, 3t, 6t, 9t, 12t |
| Options | • Overload protection by slip clutch system
• Electroless nickel plated load chain • Chain extension optional |
| Product Features | • Cold-Forging technology in gears increasing precision
and durability • Protruding type gear case for better safety • Additional welded plate on side plate increasing durability • Free "UP" chaining operation at neutral under no load status without activating free chaining mode • Overload protection by slip clutch system (Option) |
|---|
Product Video

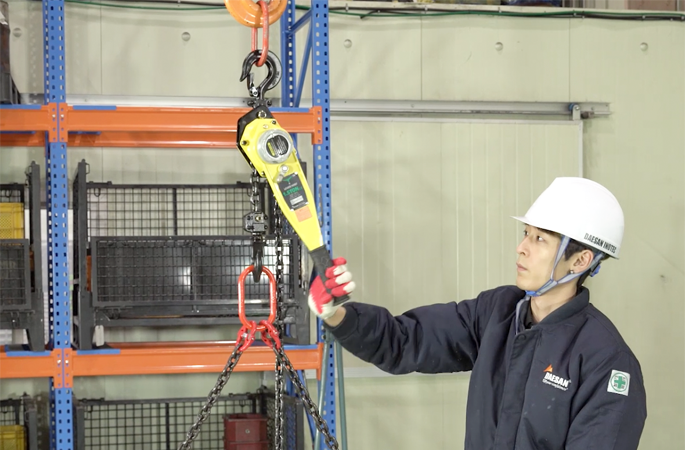

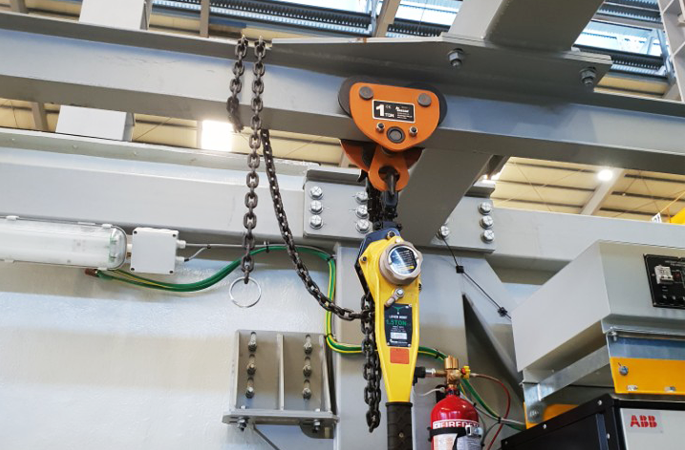

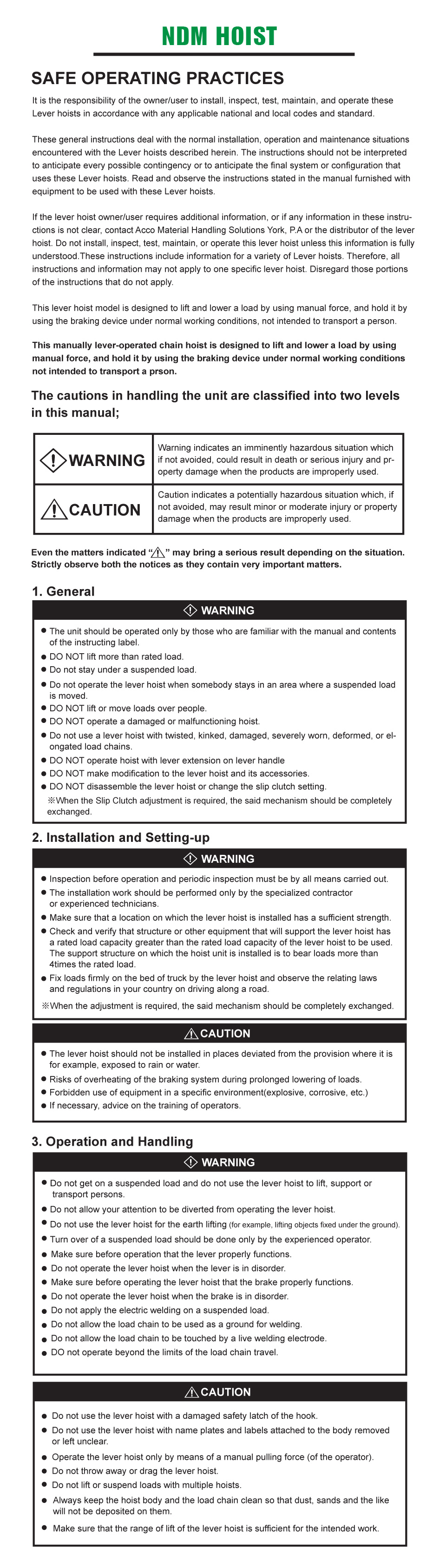

Product installation example
