Product Disciption
Manual Hoist
Lever Hoist

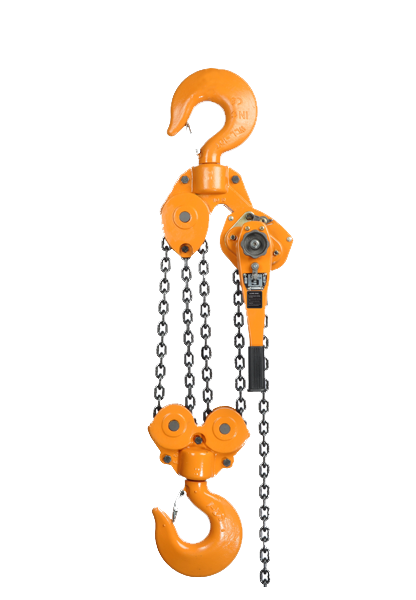

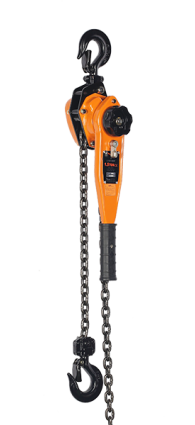

D1
D1
Built on the trust of customers for over 40 years, the lever D1 Series is a product that is consistently loved.
- 360 degree rotating hook
- Powerful gear brake system
- Simple switching with one-touch ratchet function
- non-slip rubber handle
- High-strength load chain with special heat treatment
- Simple switching with one-touch ratchet function
- Various tonnages available
- From 0.8 ton low tonnage to 12 ton high tonnage,
users can select according to needs.
(For detailed specifications, please refer to the
'Product Catalog' under 'Product Related Data'
at the bottom)
- Operation
- Two levers and a knob control the operation of
DAESAN lever hoist.
The lifting "Lock" lever can only be engaged when
the hoist chain is slack(not under load) The grip ring
is then pulled to engage the load sheave.
Choose "Up" or "Down" position on the handle to
raise or lower the load.

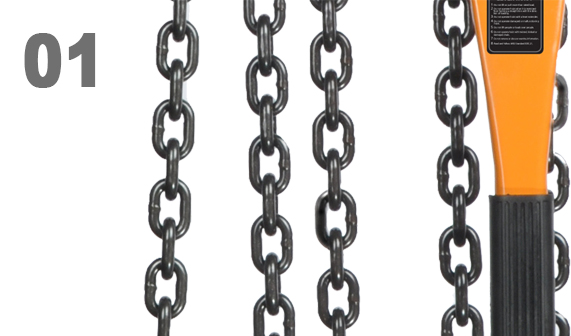

- Hooks
- Alll hooks are drop forged, heat treated steel with
spring type latches.
- Gears
- Six tooth pinion gear and four pocket
load sheave makes operation easy.
Gears are permanently lubricated
-
01

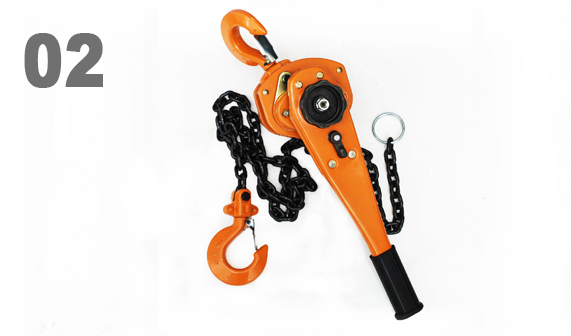

- Load Chain
- Electric welded G80 alloy steel chain is heat treated for wear resistance and strength. Accurately and uniformly sized to seat properly in load sheaves.
-
02

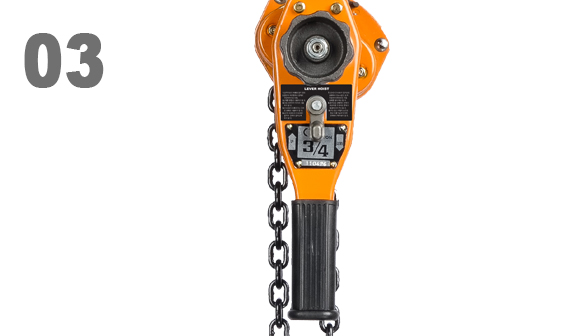

- Mechanical load brake
- Brake can hold a full capacity load stationary in any position. Load is not transferred back to handle
-
03
- Rubber Grip Handle
- Rubber Grip Handle for non-slip operation.
Product specification
| Name | Lever Hoist |
|---|---|
| Model | D1 |
| Production items | 0.8t, 1.5t, 2t, 3t, 6t, 9t, 12t |
| Options | • Electroless nickel plated load chain • Chain extension optional (Load chain, Hand chain) |
| Product Features | DAESAN light weight, portable lever hoist increases a worker's efficiency in pulling, lifting, lowering moving and skidding objects in industrial maintenance construction and utility company applications. Minimal effort is required to move tons. Excellent for stretching cable and fencing positioning machinery and building components.
|
|---|
