DAESAN compact single-phase hoist is an economical hoist with compact design and performance that can be used where electricity is supplied to single-phase.
Product Disciption Electric Hoist Friction Clutch Hoist DSSM & EDSSM

DSSM & EDSSM

DAESAN compact single-phase hoist is an economical hoist with compact design and performance that can be used where electricity is supplied to single-phase.
  • Hoist Motor Brake - Maximize service life
  • Upper Limit Switch Device - Maximize stability
  • Overload Protection Device(Friction Clutch + Overload Limiter)
  • Compact design and performance
  • Economical hoist
Brake System
Brake System
Operated by powerful pull rotor using magnetic force, it is
cone type brake.It has brake lining clearance adjustment
function that maximize the lifetime of brake lining.
Dual Safety Device Friction Clutch & Upper Limiter Switch
Dual Safety Device Friction Clutch & Upper Limiter Switch
The friction clutch is an overload protection device that
idles the motor when over loaded.This function combined
with overload limiter to prevent the hoist body or load chain
from being damaged.In addition, when a load is lifted
excessively the limit switch activates and  stops the motor,
preventing hoist and load chain damage.
motor, preventing hoist and load chain damage.
Load Sheave & Chain Guide
Load Sheave & Chain Guide
Full floating chain guide assures proper engagement of
chain on load sheave. Features 5 pockets for better
distribution of the load
Heavy-Duty Hoist Motor
Heavy-Duty Hoist Motor
The hoist  motor is high torque design and is rated
30-minute duty. Class F motor insulation and  standard
thermal motor protection is included.
Inverter (Option)
Inverter (Option)
Adjustable dual lifting speed as well as dual traversing speed by
variable frequency drive is available with EDSS / EDSSM / EDST
/ EDSTM Series from 0.5ton to 2ton.It is perfect type where
precise and accurate lifting solution is required.Very silent and
smooth lifting operation with great durability replaces conventional
pole change type dual speed hoist.Speed setting can be adjusted
upon customer request / 3 step lifting speed is optional.

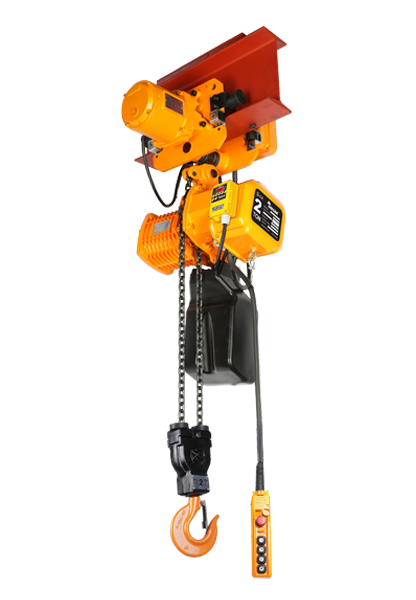

Motorized Trolley & Drop Stop & Rubber bumper(Option)
Motorized Trolley & Drop Stop & Rubber bumper(Option)
Trolley is adjustable for a range of flange widths.
Motor includes disc type brake. Side guide rollers are
included to promote smooth trolley motion and to minimize
wheel and beam wear. Wheels are dual tread design for
operation on tapered or flat flange beams. Trolley motor
includes class F insulation. Motor is rated 15 minute duty
and includes standard thermal motor protection.
Gear Box & Oil Lubrication
Hooks
Overload Alert(Option)
Weather Cover(Option)
Load Chain
Chain Container
Push Button Control
  1. 01

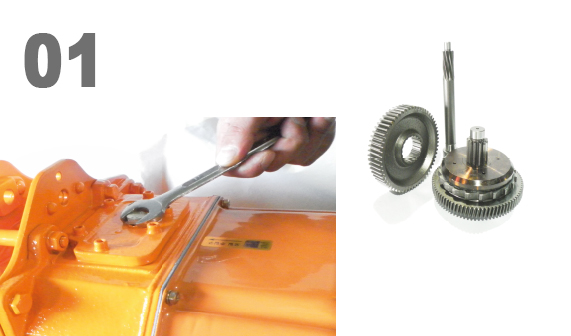

    Gear Box & Oil Lubrication
    The gearbox utilizes an alloy steel helical and spur gear reduction. Gear inspection and lubrication is easily accessible from the top of the hoist.
  2. 02

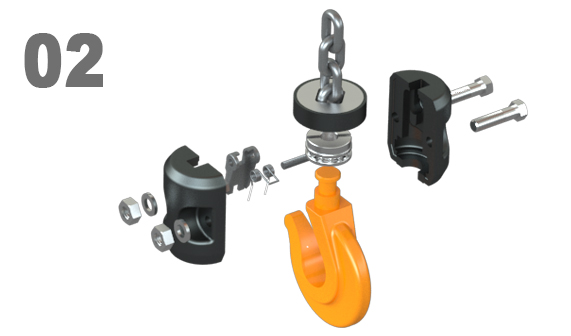

    Hooks
    Load hook is forged carbon steel hook with a heavy-duty hook latch.Thrust bearing in hook allows 360 rotation to prevent twisting of load chain.Top Hook, for hook suspended hoist is rigid.
  3. 03

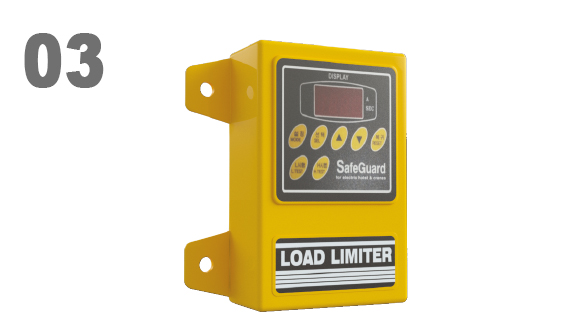

    Overload Alert(Option)
    Installed as load detecting safety device to help prevent overload for greater hoist longevity
  4. 04

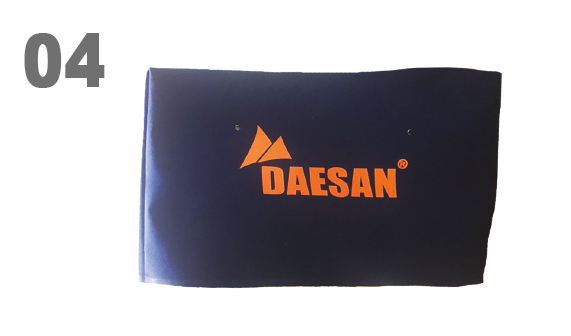

    Weather Cover(Option)
    Hoist weather cover is a practical product that increases the longevity of your hoists perfect for seasonal and permanent installations. Protect hoist in outdoor use.
  5. 05

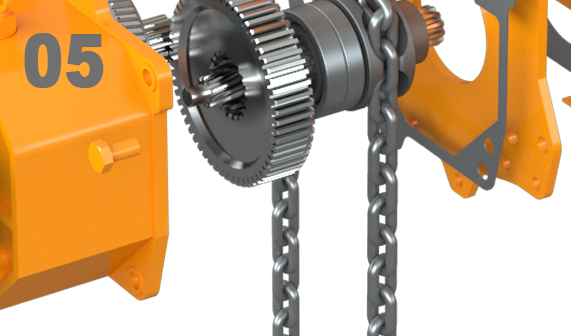

    Load Chain
    G80 load chain is case hardened and has a high resistence to wear and corrosion.Longer lifts are available per requirement. Breaking load limit with more than 5 times of rated load.
  6. 06

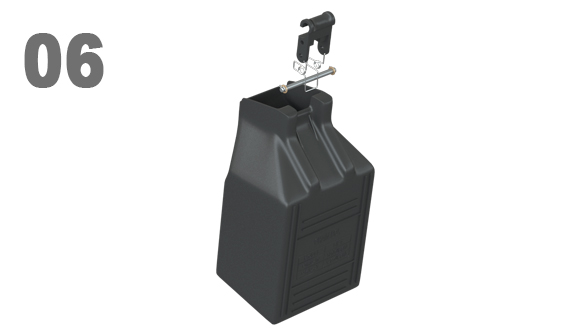

    Chain Container
    Chain container is standard equipment molded with thick polypropylene material to securely contain the chain and chain lubricant. Optional containers are available for long lift applications.
  7. 07

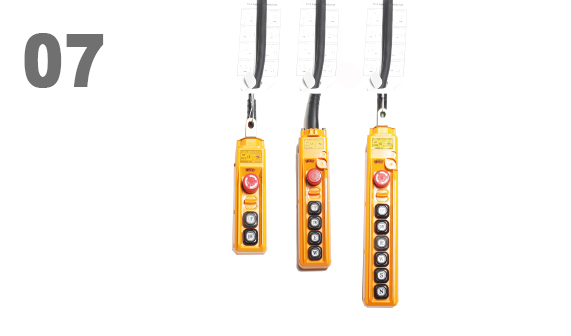

    Push Button Control
    Compact design to enable one-handed operation. Rated IP64 protection. Emergency stop button is included. Push button cable has strain relief to prevent cable damage.

Product specification

Name Friction Clutch Hoist
Model DSSM & EDSSM(Inverter type)
Production items 0.5t, 1t, 2t
Options

• Weather Cover

• Overload Alert

• Inverter

• Chain extension optional (Load chain)

• Drop Stop & Rubber bumper



Product Features

• Hoist Motor Brake - Maximize service life

• Upper Limit Switch Device - Maximize stability

• Overload Protection Device

  (Friction Clutch + Overload Limiter)

• Compact design and performance

• Economical hoist

Product Video

VIDEO
DAESAN Friction Clutch Hook Suspension hoist
DAESAN Friction Clutch Hook Suspension hoist and Functions Manual Easily made with video.
VIDEO
DAESAN Friction Clutch Hook Suspension hoist
The special features of DAESAN Friction Clutch Hook Suspension is made in 3D image for easy understanding.

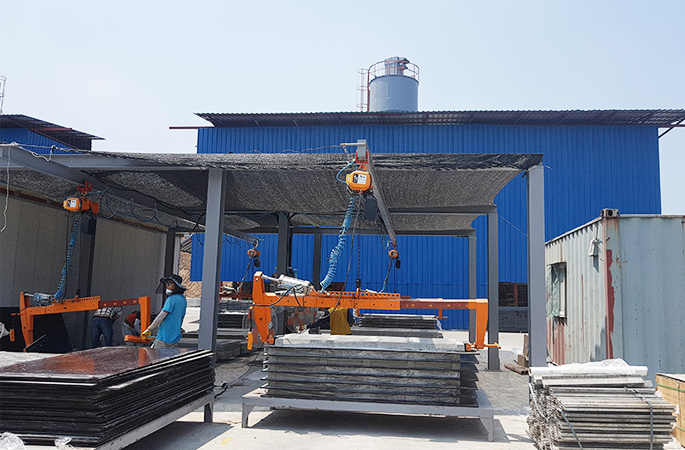

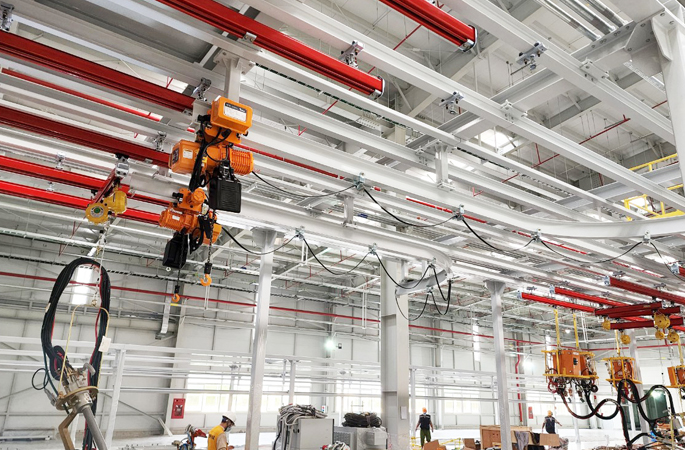

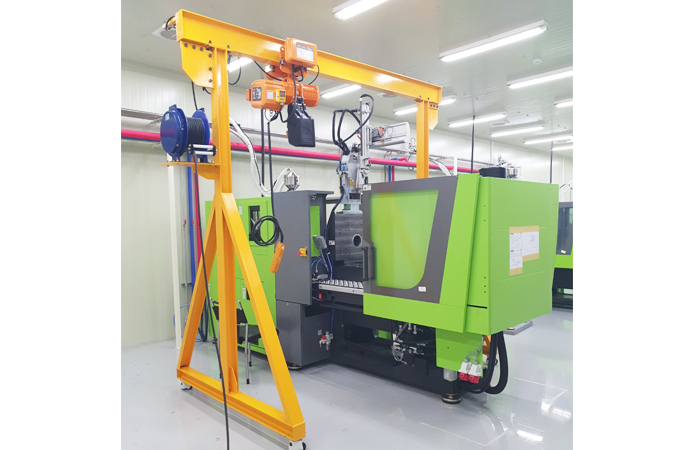

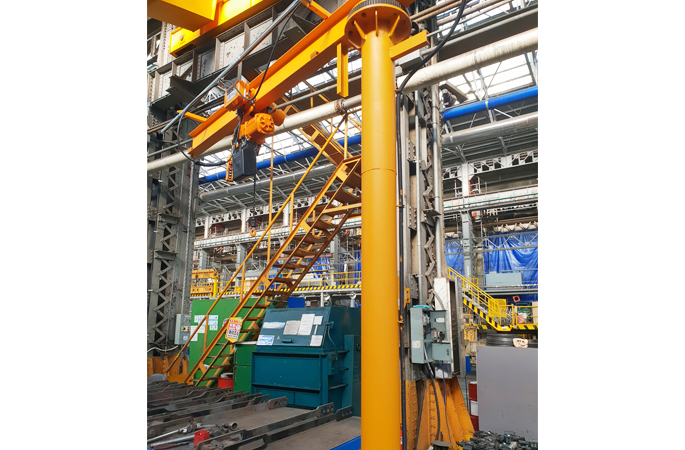

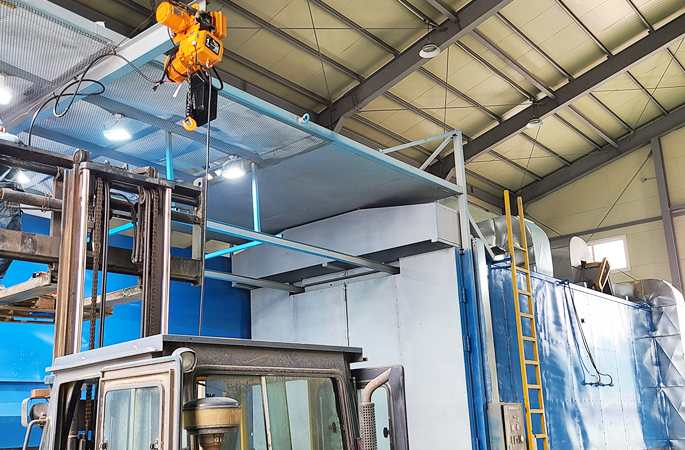

Product installation example
