Product Disciption

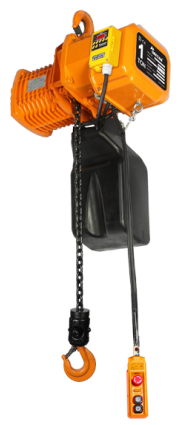

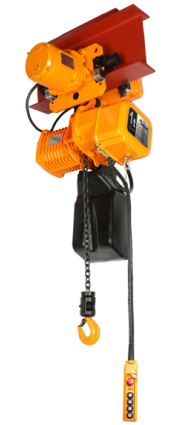

Electric Hoist
Smart Chain Hoist
DLM & EDLM
DLM & EDLM

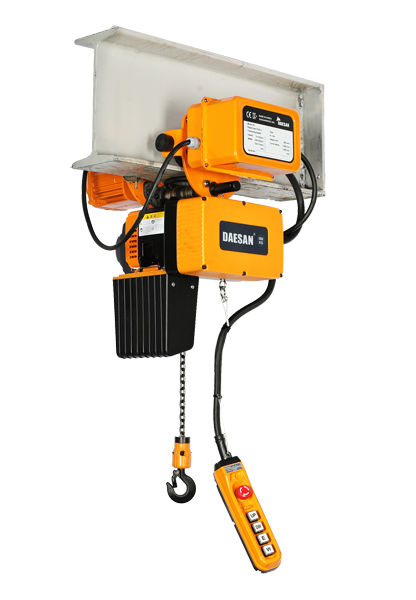

DAESAN Smart Hoist is a hoist that can be used in various work environments such as homes and construction sites by being upgraded with modern design and high-performance functions.
- Stepless Control by VFD
- Die casting & injection mold (light and solid body)
- Strong and fast acting conical brake (Easy maintenance)
- Hoist with smallest Headroom in Korea
- Heavy-Duty Hoist Motor
- The hoist motor is high torque design
and is rated 30-minute duty.
Class F motor insulation and standard thermal
motor protection is included.
- Brake System
- Simple fast acting conical style motor
brake for years of trouble free operation.
- Friction Clutch
- The friction clutch is an overload protection device
that prevents lifting when overloaded.
- Stepless Control with VFD
- Hoist operation speed is controllable by the degree of
push button press for smooth and precise operation.
- Variable speed control
- Our patented stepless control system is achieved
via push button, interface and VFD.
-
01

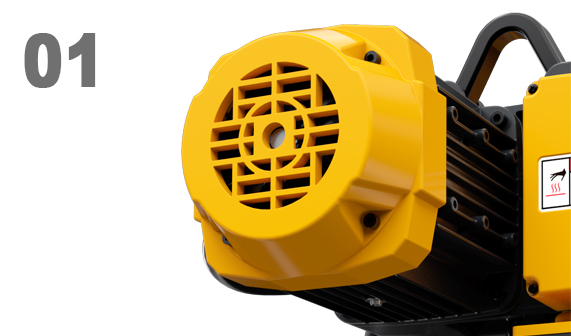

- Cooling Fan
- Cooling fan is equipped to cool motor & brake resistor.
-

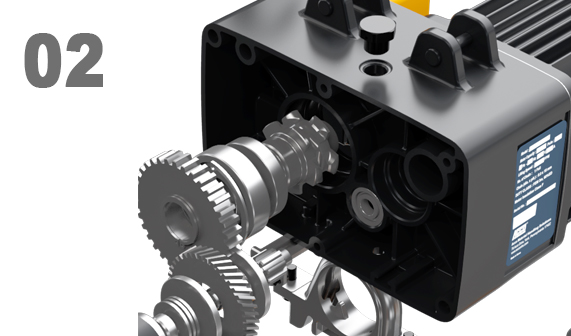

02
- Magnet inside gear box
- Small magnet is equipped inside the gear box to filter out foreign materials.
-
03

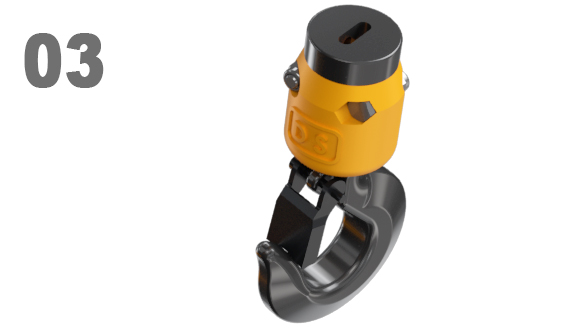

- Hook
- Load hook is a forged carbon steel hook with a heavy-duty hook latch. Thrust bearing in load hook allows 360° rotation to prevent twisting of load chain
-

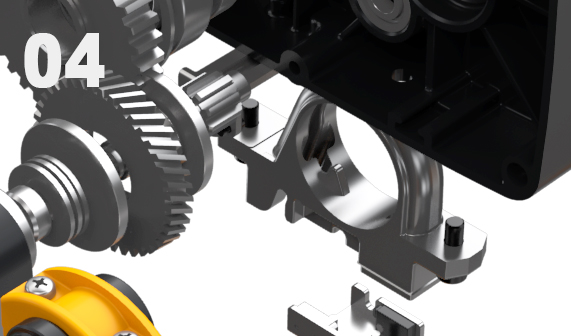

04

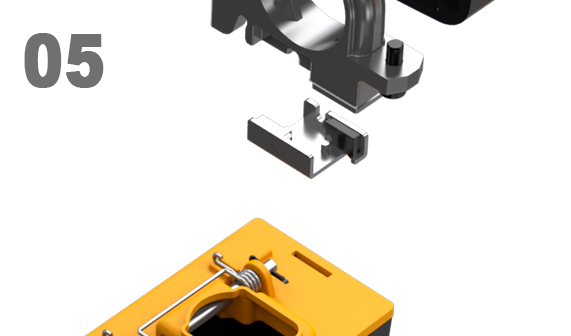

- Chain Guide
- Chain guide is designed suitable for minimizing wear on high-speed operation.
-
05
- Upper/Lower Limit Switch
- When the hoist is raised to high or low hook position the upper or lower limit switch activates and stops the hoist motor respectively.This prevents unnecessary clutch wear.
-

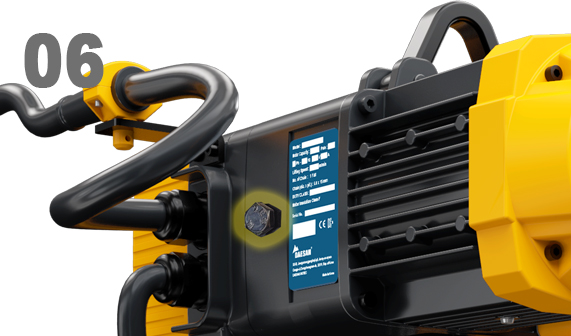

06

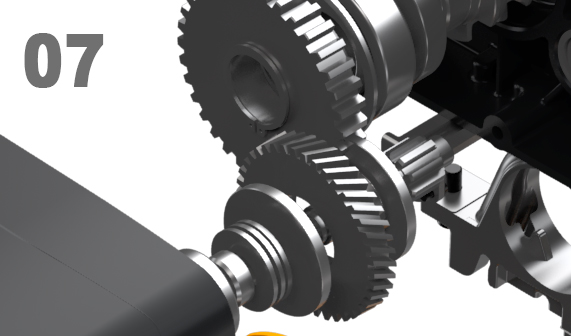

- Gear oil level can be easily inspected through the hole located at the side of the gear box.
- Gear oil level can be easily inspected through the hole located at the side of the gear box.
-
07
- Load Sheave
- Load sheave features 5 pockets for smoother operation and better distribution of the load.
-
08

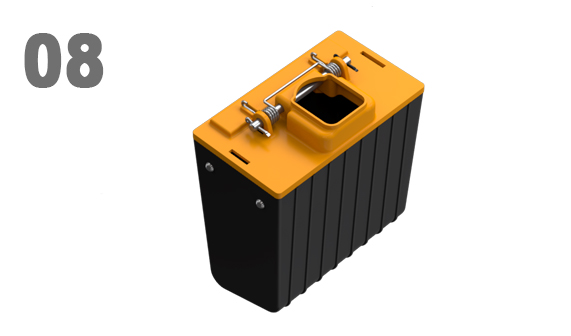

- Load Sheave
- Chain box is standard equipment comes with unique spring design to prevent chain box damage.
Product specification
| Name | Smart Hoist |
|---|---|
| Model | DLM / EDLM(Inverter type) |
| Production items | 125kg, 250kg, 500kg |
| Options |
• Overload Alert • Electrical Specifications (1Ph, 3Ph) • Chain and pushbutton cable extensions other than standard specifications • Various speed options of hoist & trolley (1 speed, 2 speed, variable speed) • Anti-shock rubber bumper and traversing limit • Applicable to various beam widths (75mm - 150mm) |
| Product Features | ㆍlight and sturdy ㆍCompact size (minimum headroom implementation) ㆍEasy maintenance management ㆍPrecise work possible with speed control ㆍMinimal hoist wobble with smooth operation |
|---|
Product Video
Product data

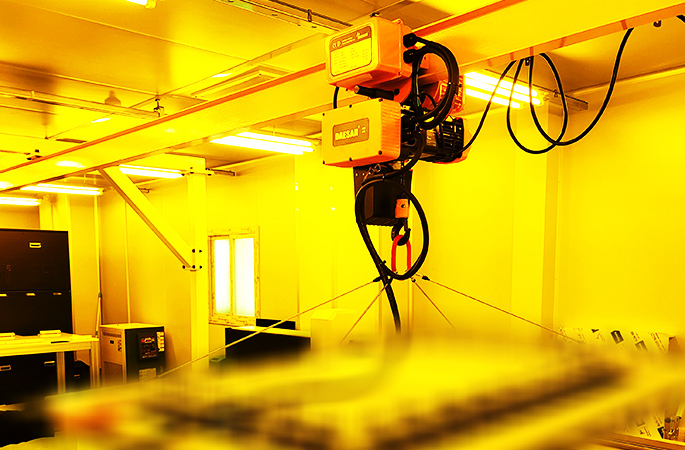

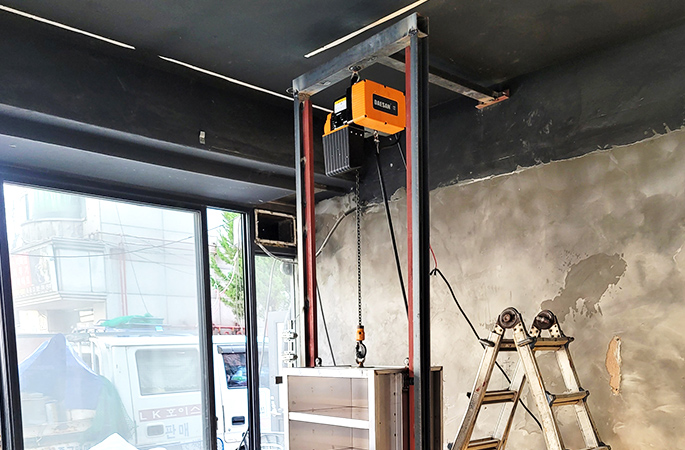

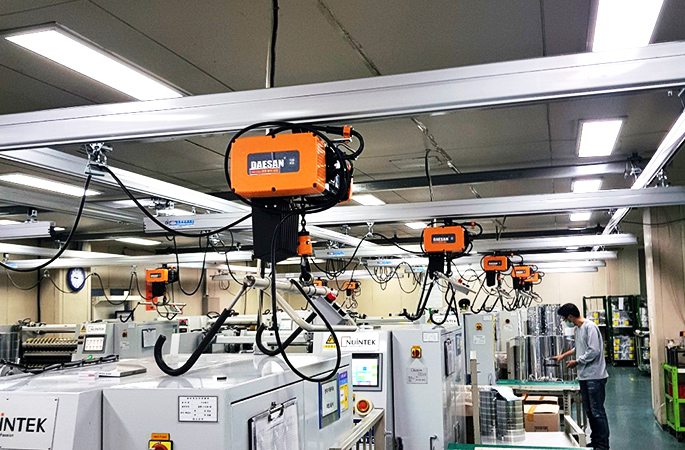

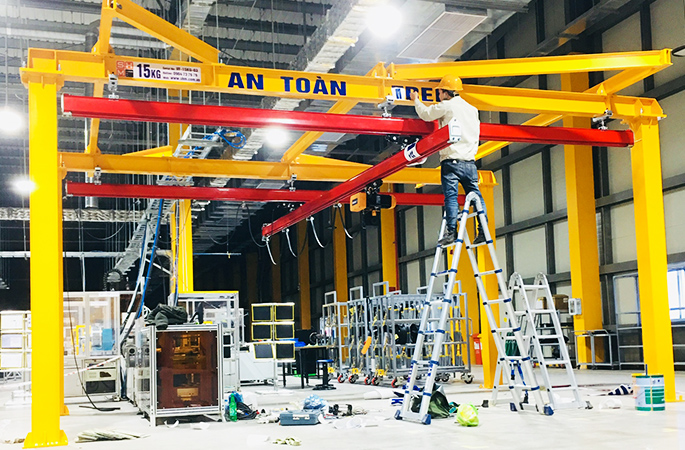

Product installation example
Product related inquiry
For product quotation, product usage inquiry,
agency affiliate inquiry, or other inquiries in detail,
please use the inquiry form at the customer center on our homepage.
