The product features a lightweight design using die-cast components and a fully free operation function that enhances both convenience and safety

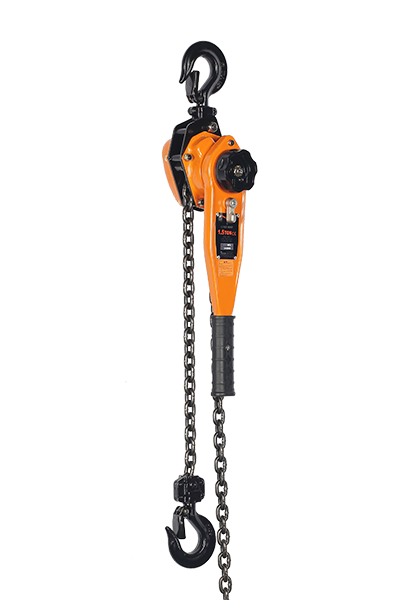

Product Disciption Manual Hoist Lever Hoist NDF

NDF

The product features a lightweight design using die-cast components and a fully free operation function that enhances both convenience and safety
  • Non-touch operation enables free, up and down movement.
  • The use of special alloy steel enables a more compact and lightweight design.
  • Reducing product weight by designing with die-cast components
Various tonnage available
Various tonnage available
Various tonnage from 0.8 ton to 12 ton available
(Please refer to the product catalog below for detailed specifications)
Cold forged integrated gears
Cold forged integrated gears
Highly durable cold forged
integrated gears (3/4t, 1.5t, 2t)
Protruding type gear case
Protruding type gear case
Protruding type gear case for better gear durability and safety.
Fully Free Mechanism
Fully Free Mechanism
By applying a fully FREE mechanism, chain adjustment becomes quick and easy,
 maximizing work efficiency and enhancing user convenience.

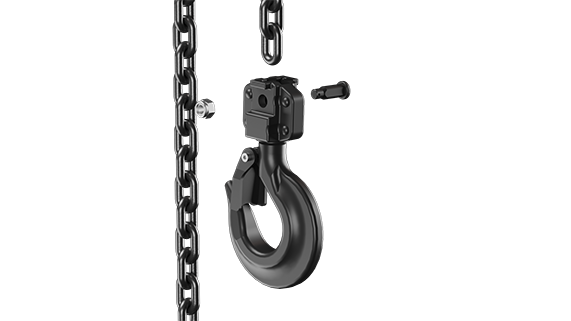

Protecting hook and load chain
Protecting hook and load chain
NDF lever hoist has a hook storage point.
Operator can quickly and easily store the hook during travel.
This is a great feature that protect the hook, latch and load.
chain of a lever hoist from damage during travel.
Various application hooks(Options)
Frame / Side Plate
Chain
Rubber Grip Handle
Hooks
Stay Bolt
Mechanical Load Brake
Single Spring
  1. 01
    Various application hooks(Options)
    A : Rivet type (basic) B : Welding type (recommended for strength improvement) C : Beam type (recommended for work on steel structures in shipyards)
  2. 02

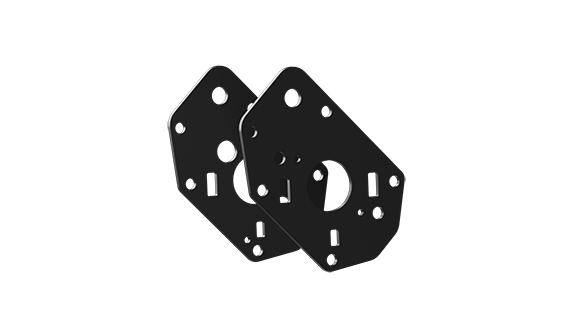

    Frame / Side Plate
    Rugged, light weight steel design support internal mechanism. Welded plate on side plate maximize the hoist durability.
  3. 03

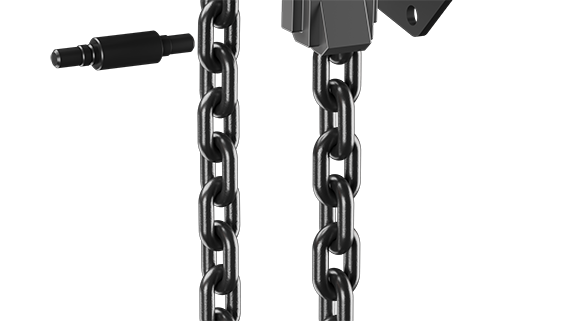

    Chain
    Electric welded alloy steel load chain is heat treated for wear resistance and strength. Accurately and uniformly sized to seat properly in load sheaves.
  4. 04

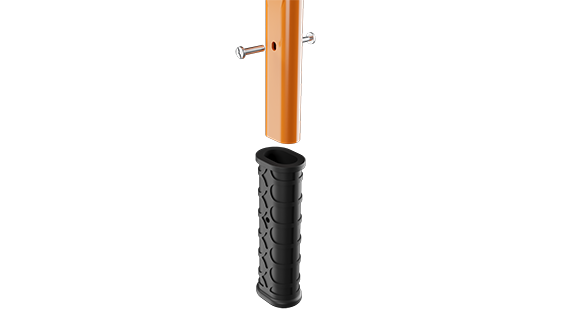

    Rubber Grip Handle
    Rubber Grip Handle for non-slip operation.
  5. 05

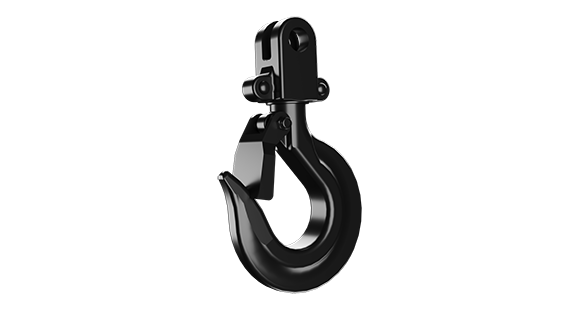

    Hooks
    All hooks are drop forged, heat treated steel with safety latches. Both hooks rotates 360º for easy rigging.
  6. 06
    Stay Bolt
    Welded stay bolt increases durability of lever hoist caused by external impact or shock.
  7. 07
    Mechanical Load Brake
    Brake can hold full capacity load stationary in any position. Load is no transferred back to handle during handle advancement.
  8. 08

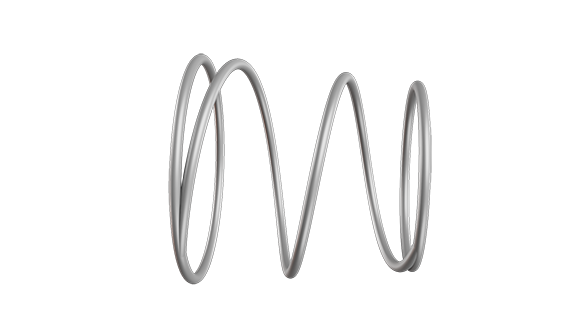

    Single Spring
    By adopting a single spring, we have achieved structural simplification and enhanced functionality.

Product specification

Name Lever Hoist
Model NDF
Production items 0.8t, 1.5t, 2t, 3t, 6t, 9t, 12t
Options

Chain extension optional

Product Features

· Cold-forging technology in gears increasing precision and durability

· Protruding type gear case fo better safety

· Additional welded plate on side plate increasing durability

· Free "UP" chaining operation at neutral under no load status without activating free chaining mode



and load.

chain of a lever hoist from damage during travel.

Product Video

VIDEO
DAESAN NDF Promotion Video
Daesan‘s newly released NDF Series applies a completely free function that improves ease of use to far exceed existing lever hoists.
