Product Disciption
Manual Hoist
Chain Block
EXDSN
EXDSN

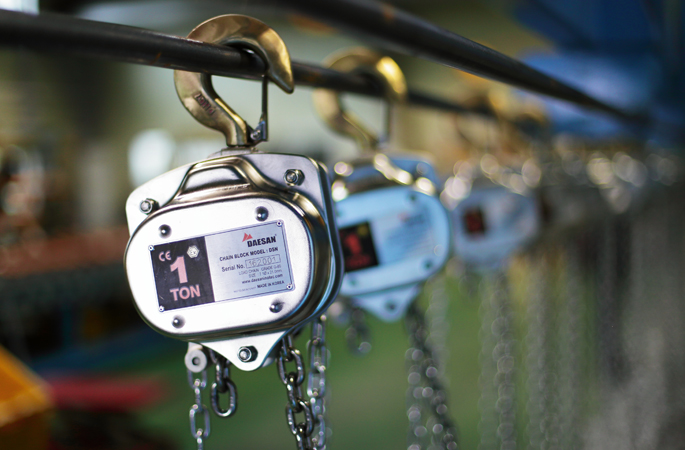

EXDSN spark resistant chain block is specially designed for use in petrochemical, food and pharmaceutical material handling industry,where spark should not be occuring for use in environment with combustible gases and dusts.
- EXDSN spark resistant chain block comes with Stainless steel hand chain and nickel plated load chain or stainless steel load chain
- Solid bronze (HBsC4) or copper plated hook designed to resist sparks at the point of contact
- Nickel plated load sheave, side plates, hand wheel, and gear cover
- Overload protect slip clutch

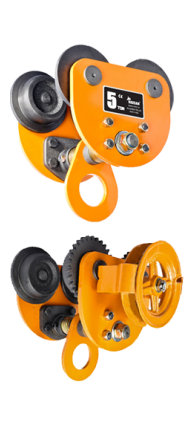

- EXDP & EXDG spark resistant trolley comes with Nickel plated trolley plates
- Drop stop and rubber bumpers
- EXDSN spark resistant chain block comes with
- 1. Stainless steel hand chain and nickel plated load chain or stainless steel load chain
2. Solid bronze (HBsC4) to resist sparks at the point of contract
- EXDSN spark resistant chain block comes with
- 3. Nickel plated load sheave, side plates, hand wheel, and gear cover
4. Overload protect slip clutch
- Canvas chain bag with stainless steel bracket (Option)
- The chain box prevents the load chain from
sagging and protects the chain from foreign substances.
-
01

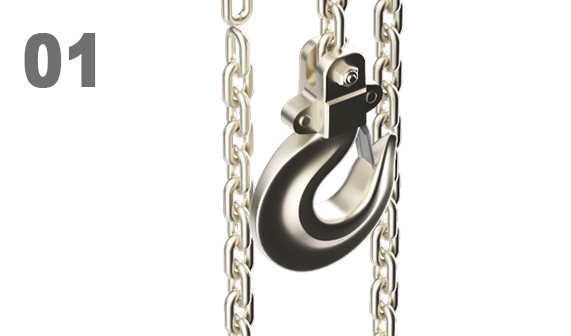

- Hooks
- Available in three materials according to need: brass (HBsC4), copper coating (phosphor bronze), and stainless steel.
-
02

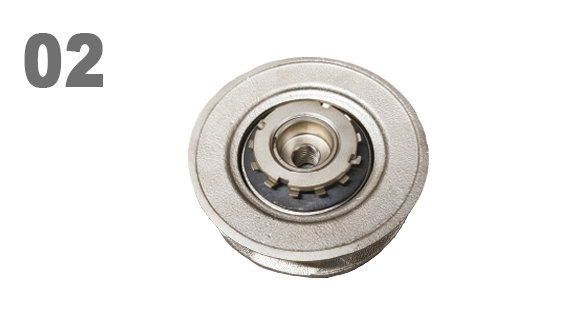

- Overload protection device
- It is installed inside the chain block and act as a safety device that prevents overload operation
-
03

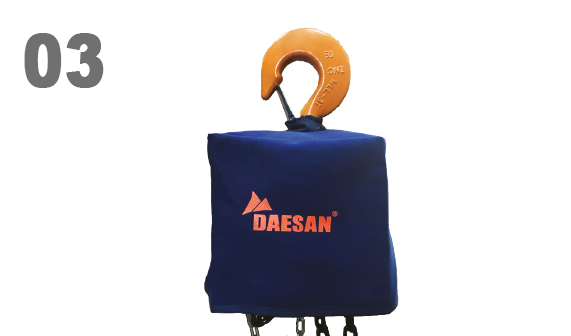

- Weather cover (option)
- The weather cover protects the chain block body from foreign substances and prevents corrosion, thereby extending the chain block service life.
Product specification
| Name | Spark Resistant Chain Block |
|---|---|
| Model | EXDSN |
| Production items | 1t,2t,3t,5t,10t |
| Options | • Overload protection by slip clutch system • Chain box for load chain • Hoist body weather cover • Chain extension optional (Load chain, Hand chain) |
| Product Features | EXPLOSION PROTECTION & SPARK RESISTANCE Designed for explosive environments with spark-resistant, full bronze suspension and load hooks; stainless steel hand chain and electroless nickel plated load chain ; and bronze |
|---|
Product Video
Product data

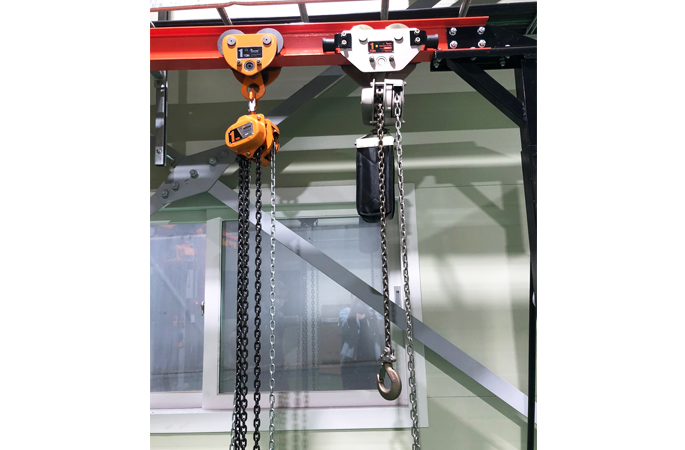

Product installation example
