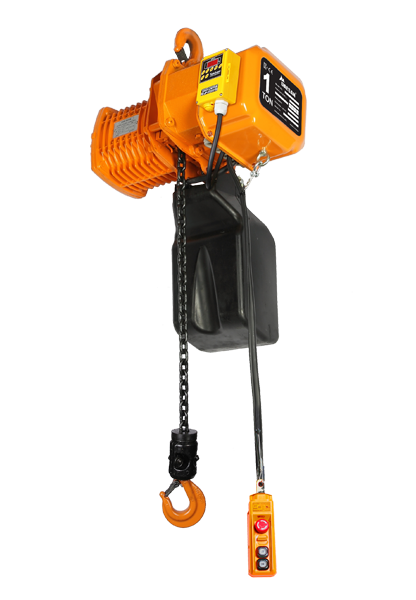

DAESAN compact hoist is an economical hoist with compact design and performance.
产品 电动 葫芦 紧凑型链式葫芦 DST & EDST

DST & EDST

DAESAN 紧凑型提升机是一款经济型提升机, 具有紧凑的设计和性能。
Brake System
Operated by powerful pull rotor using magnetic force, it is
cone type brake.It has brake lining clearance adjustment
function that maximize the lifetime of brake lining.

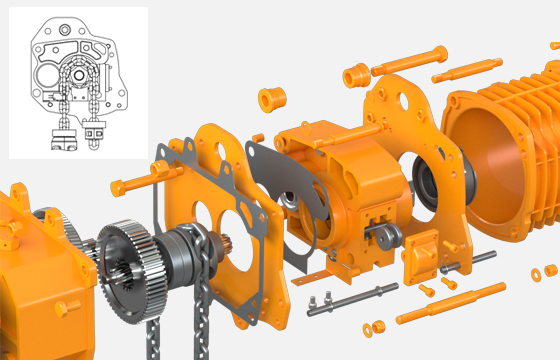

Dual Safety Device Friction Clutch & Upper Limiter Switch
The friction clutch is an overload protection device that
idles the motor when over loaded.This function combined
with overload limiter to prevent the hoist body or load chain
from being damaged.In addition, when a load is lifted
excessively the limit switch activates and  stops the motor,
preventing hoist and load chain damage.
Load Sheave & Chain Guide
Full floating chain guide assures proper engagement of
chain on load sheave. Features 5 pockets for better
distribution of the load

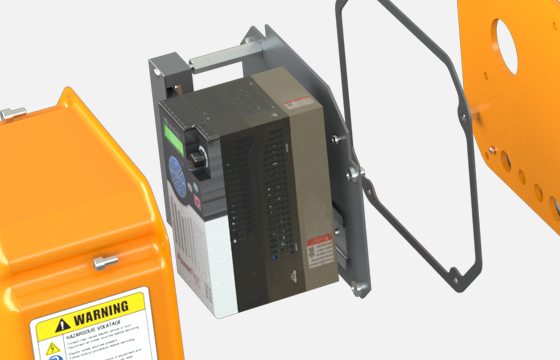

Inverter (Option)
Adjustable dual lifting speed as well as dual traversing speed by
variable frequency drive is available with EDSS / EDSSM / EDST
/ EDSTM Series from 0.5ton to 2ton.It is perfect type where
precise and accurate lifting solution is required.Very silent and
smooth lifting operation with great durability replaces conventional
pole change type dual speed hoist.Speed setting can be adjusted
upon customer request / 3 step lifting speed is optional.
  1. 01

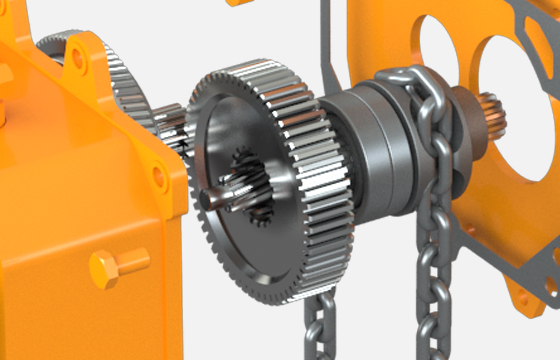

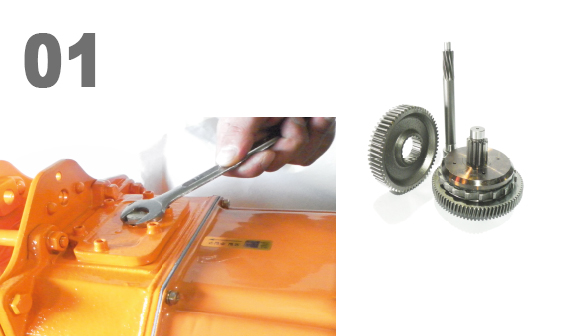

    Gear Box & Oil Lubrication
    The gearbox utilizes an alloy steel helical and spur gear reduction. Gear inspection and lubrication is easily accessible from the top of the hoist.
  2. 02

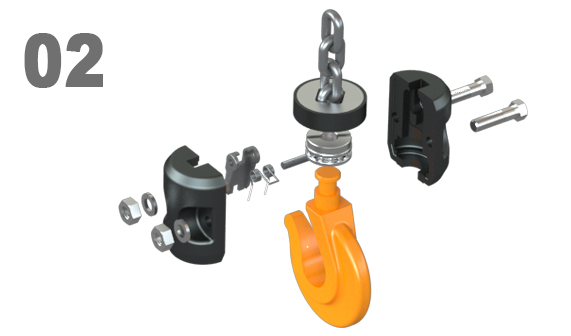

    Hooks
    Load hook is forged carbon steel hook with a heavy-duty hook latch.Thrust bearing in hook allows 360 rotation to prevent twisting of load chain.Top Hook, for hook susp-ended hoists is rigid.
  3. 03

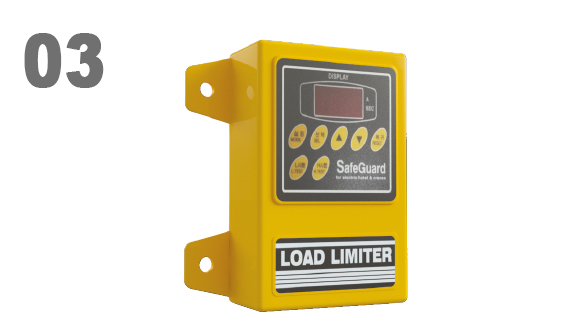

    Overload Alert(Option)
    Installed as load detecting safety device to help prevent overload for greater hoist longevity
  4. 04

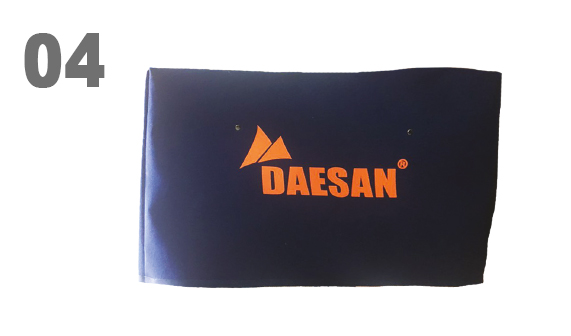

    Weather Cover(Option)
    Hoist weather cover is a practical product that increases the longevity of your hoists perfect for seasonal and permanent installations. Protect hoist in outdoor use.
  5. 05

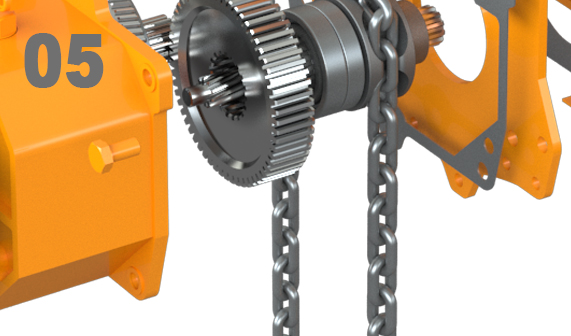

    Load Chain
    G80 load chain is case hardened and has a high resistence to wear and corrosion.Longer lifts are available per requirement. Breaking load limit with more than 5 times of rated load.
  6. 06

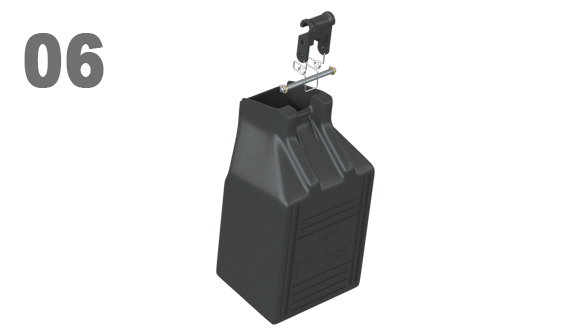

    Chain Container
    Chain container is standard equipment molded with thick polypropylene material to securely contain the chain and chain lubricant. Optional containers are available for long lift applications.
  7. 07

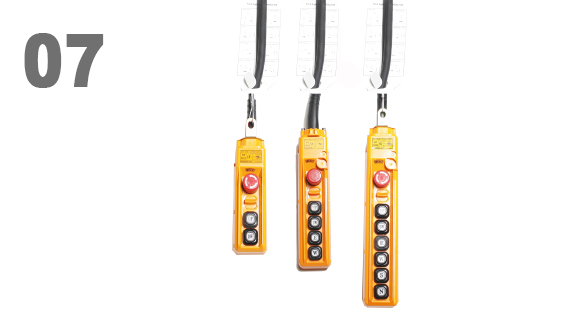

    Push Button Control
    Compact design to enable one-handed operation. Rated IP64 protection. Emergency stop button is included. Push button cable has strain relief to prevent cable damage.

产品规格

产品名 Friction Clutch Hoist
型号 DST & EDST(Inverter type)
生产项目 0.5t, 1t, 2t
选项

• Weather Cover

• Overload Alert

• Inverter

• Chain extension optional (Load chain)

• Drop Stop & Rubber bumper



产品特点

• Hoist Motor Brake - Maximize service life

• Upper Limit Switch Device - Maximize stability

• Overload Protection Device

  (Friction Clutch + Overload Limiter)

• Compact design and performance

• Economical hoist

产品视频

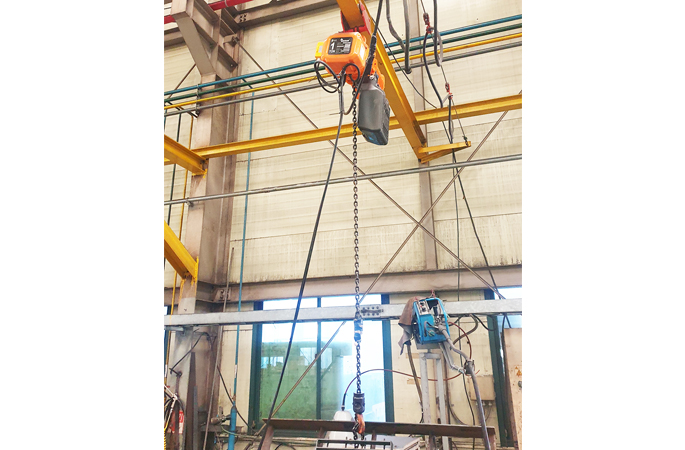

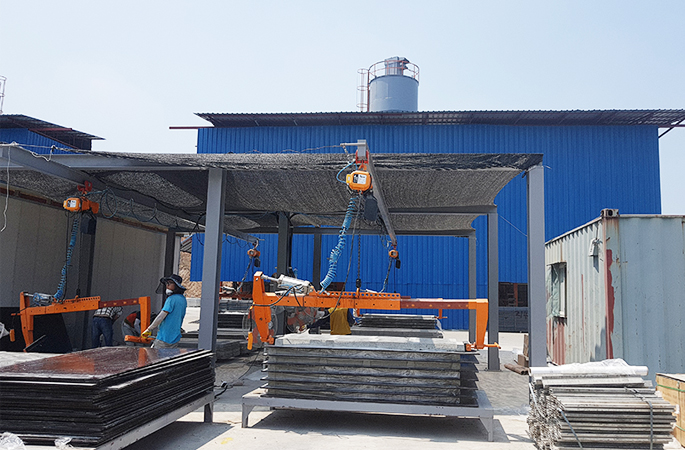

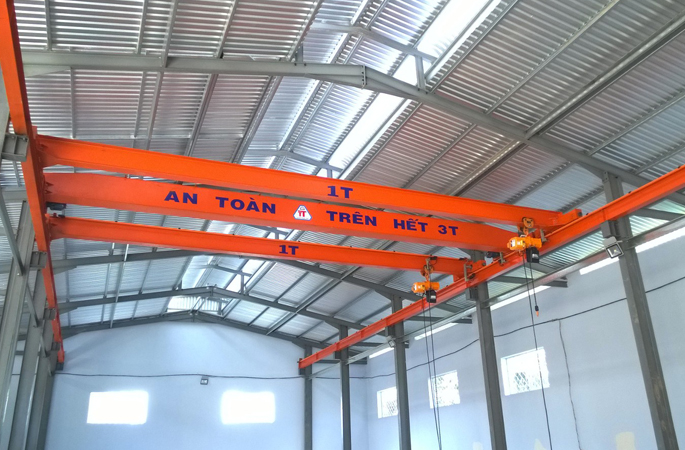

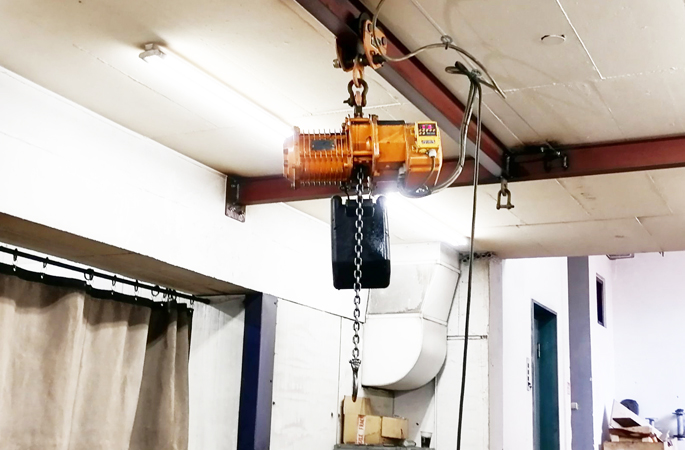

产品安装示例
